Meet Tantalus P400S TG – My New Rig

Ryzen is here and so is my new computer. Meet Tantalus, named after the FTL drive from the Normany SR2 of Mass Effect fame. I have talked about the new system briefly on our Technobabble podcast but I thought I would go more in depth here with a look at some benchmarks and so on in comparison with Farpoint, my previous main system.

196636.171a9367a368942e94683f26f567fc97.1600

First we should talk specs. At the launch of AMD’s new Ryzen chip there were only three eight core and sixteen thread available: the R7 1700, R7 1700X and R7 1800X.

CPU

R7 1700

R7 1700X

R7 1800X

CORE COUNTS

8C/16T

8C/16T

8C/16T

CLOCK

3.0 GHz – 3.7 GHz

3.4 GHz – 3.8 GHz

3.6 GHz – 4.0 GHz

TDP

65W

95W

95W

PRICE (current as of writing)

$407.98 CAD

$479.98 CAD

$619.98 CAD

On April 11th the new R5 chips are releasing and for your reference I’ll put the information here so you can at least see what they are compared to the initial chips.

CPU

R5 1400

R5 1500X

R5 1600

R5 1600X

CORE COUNTS

4C/8T

4C/8T

6C/12T

6C/12T

CLOCK

3.2 GHz – 3.4 GHz

3.5 GHz – 3.7 GHz

3.2 GHz – 3.6 GHz

3.6 GHz – 4.0 GHz

TDP

65W

65W

65W

95W

PRICE (MSRP USD)

$169.00

($226.67 CAD)

$189.00

($253.50 CAD)

$219.00

($293.73 CAD)

$249.00

($333.97 CAD)

Anyways, after checking the reviews I decided to go with the R7 1700. Reviewers were coming to the conclusion that all three chips were basically the same but clocked differently and so most have been able to achieve stable overclocks on their 1700s up to 4GHz with a decent air or water cooler.

That was the toughest choice. There wasn’t really a budget for this build. I had promised myself that I would build something that would be nearly top of the line. So the specs. OK. Fine. Prices are in CAD.

CPU

Ryzen R7 1700

$407.98

CPU COOLER

Corsair H110i

$138.99

MOTHERBOARD

MSI X370 Xpower Gaming Titanium

$399.99

MEMORY

G.Skill TridentZ RGB 32GB (4X8GB) DDR4-3000

$389.99

STORAGE

Samsung 850 EVO 250GB

WD Caviar Blue 1TB 3.5”

Pulled from CapSupreme

VIDEO CARD

Asus RX480 8GB Reference x2

Pulled from Farpoint

CASE

Phanteks Eclipse P400s Tempered Glass

$119.99

POWER SUPPLY

EVGA SuperNOVA G3 750 Modular 80+ Gold

$149.99

TOTAL

$1,606.92

WITH NEW ZOWIE MONITORS

BenQ Zowie 24″ RL2455

$2,126.90

Like I said, I wasn’t too concerned about the cost this time around. I wanted a system that could blow away Farpoint and CapSupreme. But did it deliver? Well shall we compare Farpoint and Tantalus directly then?

This slideshow requires JavaScript.

First I want to tell you I was able to get at fully stable overclock of my 1700 at 3.9GHz at 1.375V. Where it comes to voltage I wouldn’t want to be running this chip on anything less than my H110i to cool it. I left my RX 480s at their stock 1266MHz.

Alright, benchmarks. I will show you my in game benches but keep in mind I ran all those at 1440p previously. All my new benchmarks are at 1080p. Synthetic benchmarks are run at their defaults. Also I only included the graphics scores on the previous runs so I will include those only this time as well.

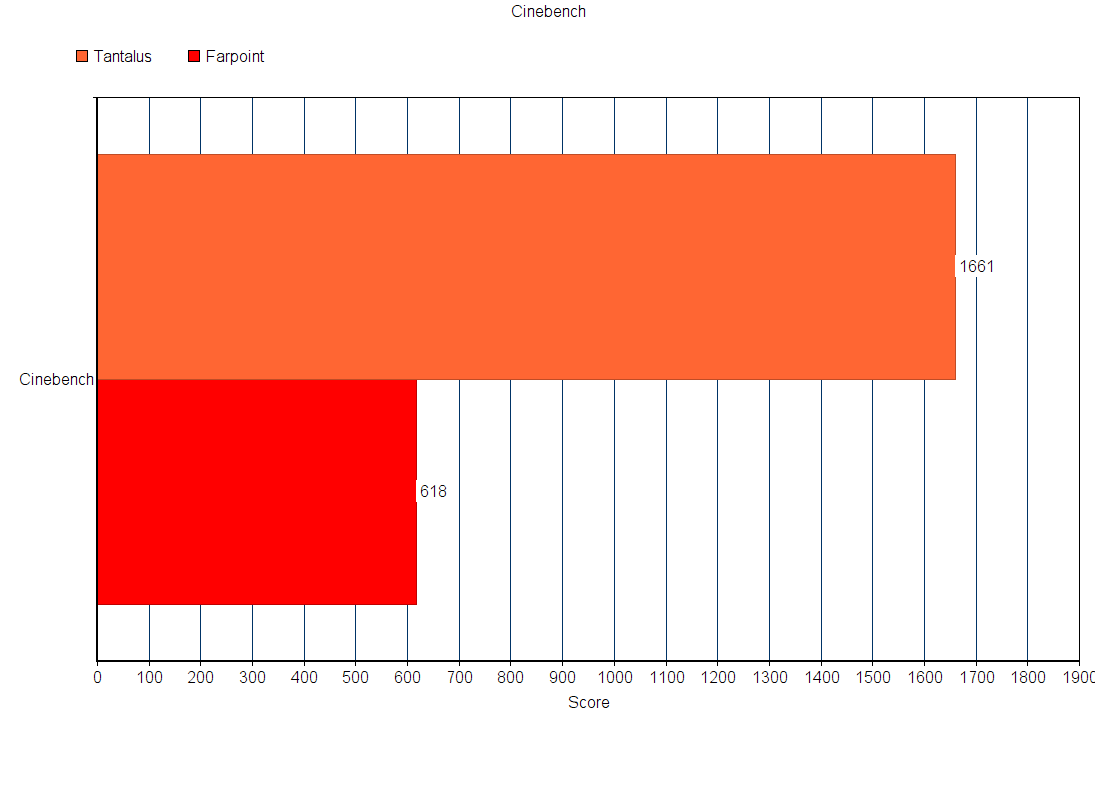

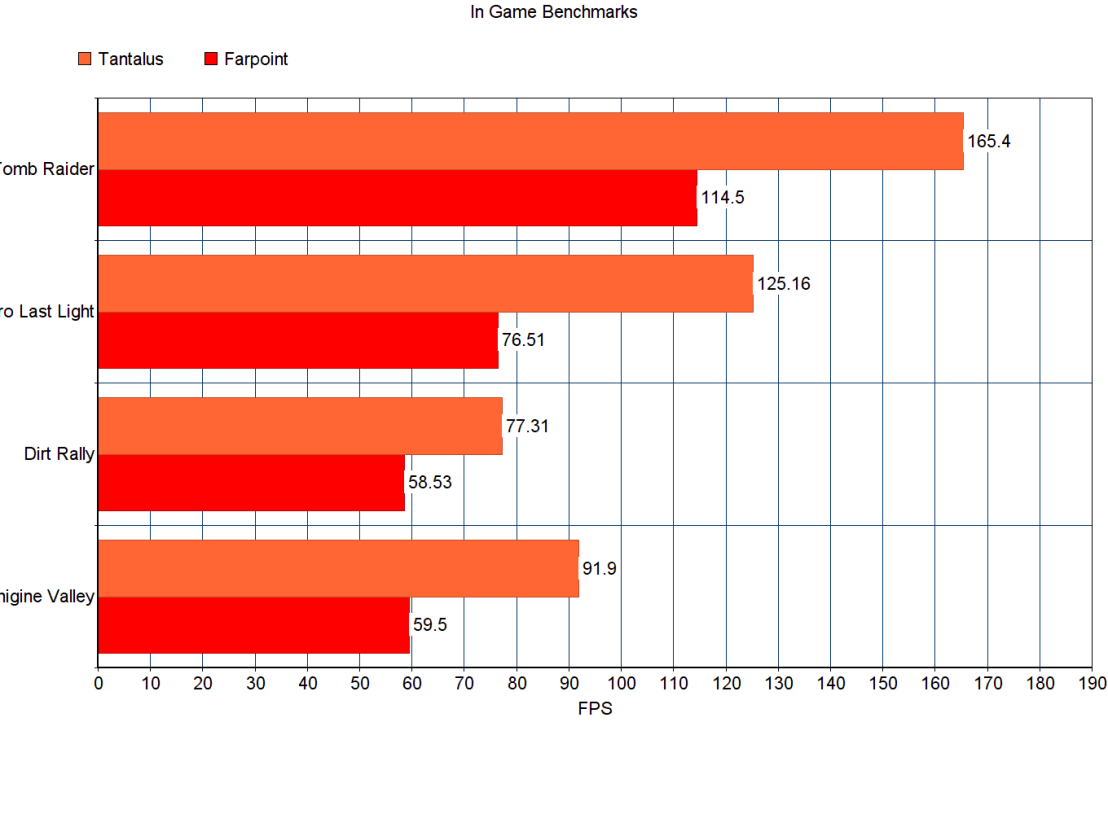

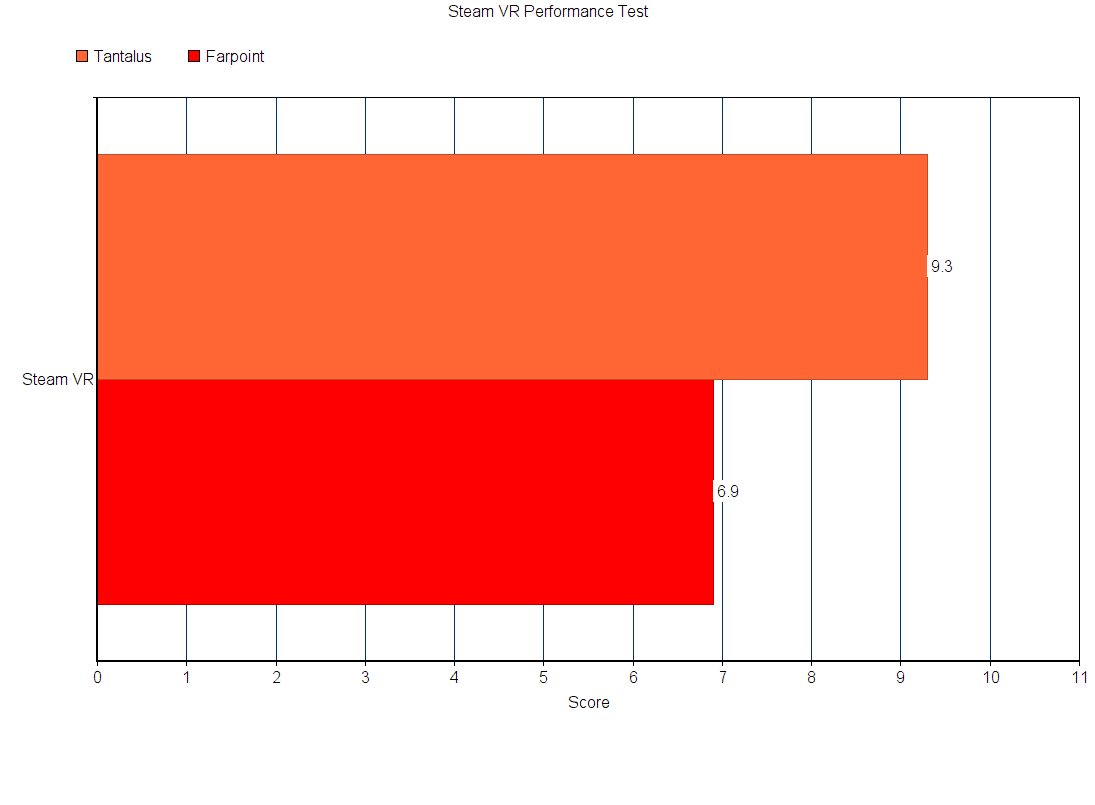

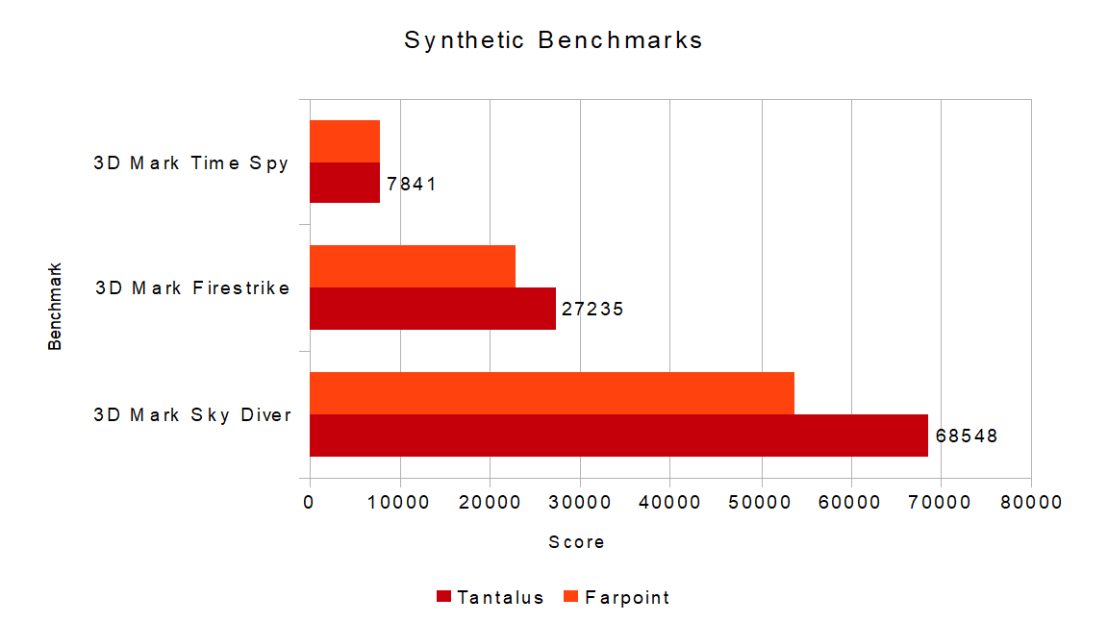

Untitled20170410020059

20170410020521

20170410020557

Data, data everywhere! There are your numbers. Tantalus stomps all over Farpoint in almost every test. In fact the only one that is remotely close is Time Spy in DX12 mode. As you can see here DX12 utilizes all the available power pretty well already. The bump in score for Tantalus is merely the extra 8 SMT cores.

This slideshow requires JavaScript.

As for building the system overall it was a lot of fun. I mean the best part is always opening the boxes but man getting the final system all worked out has been a treat. The hardest part of the build was actually getting the RGB effects set up and working on the G.Skill memory. Also apparently Ryzen cpus prefer even CAS numbers like CAS 14 and 16. If you can get a kit of CAS 14 or 16 in 3200MHz you’ll be set.

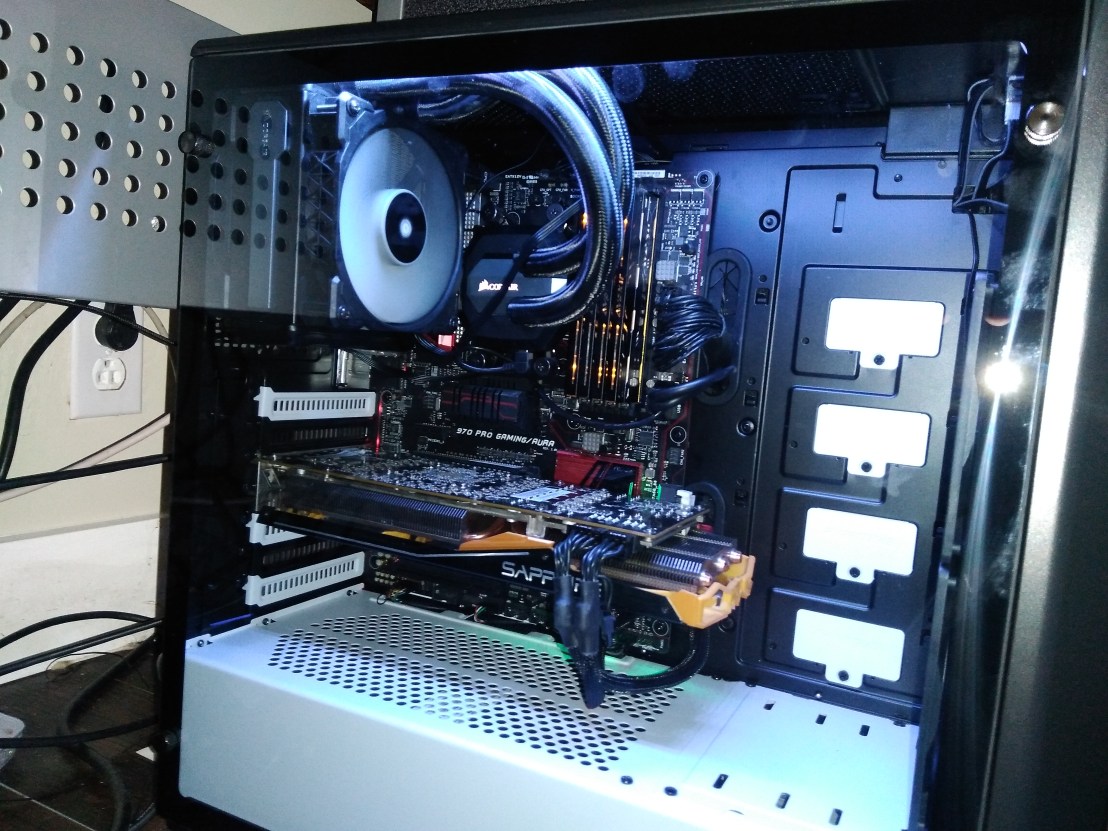

The H110i took a bit to wrestle in to plase as well but it turned out great. In fact so well that I ordered a second P400S TG and moved Farpoint over in to it. Sorry In Win 303, I loved you but I love the P400S more. Here’s what Farpoint looks like now:

IMG_20170409_114717

The MSI motherboard is more expensive than it needs to be really. Don’t get me wrong, it looks great and I actually really like how the UEFI interface is laid out. It is also nice to have a temperature readout right on the motherboard itself instead of having to open up AMD’s Ryzen Master software to get an accurate reading.

Other than that I would not change a thing in this build. I love it. Let me know what you guys think.
